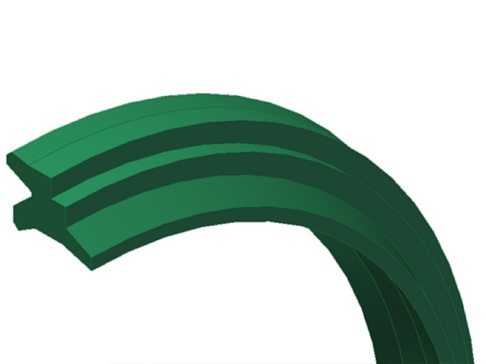

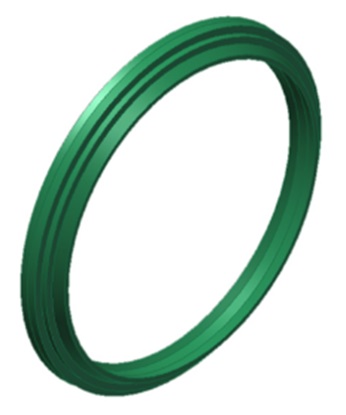

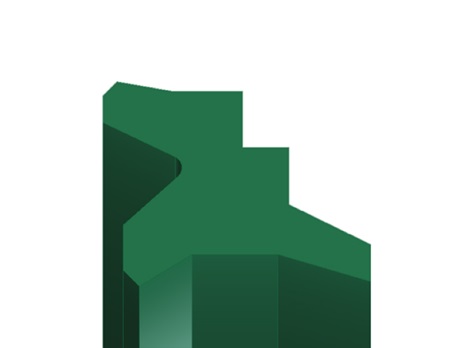

Joint racleur hydraulique et pneumatique à double effet. Combinaison généralement utilisée avec des joints en PTFE pour la conception de boîtier basée sur ISO6195-C.
Application:
Utilisé avec le joint de jeu de doreurs
Avantage:
Excellente friction, joint double voie
Matériel:
POLYURÉTHANE, CAOUTCHOUC, PU.

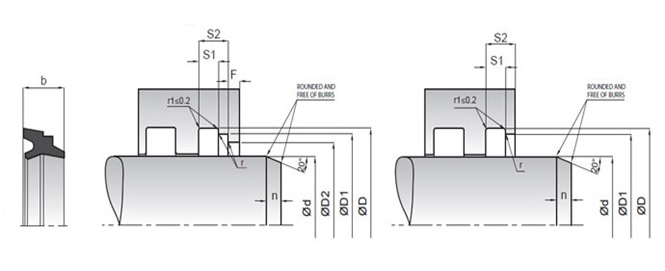

| Code MT | DI | DE | D1 | D2 | S1 | S2 | b | |
|---|---|---|---|---|---|---|---|---|
| MT-W11A | 10,0 | 18,0 | 16,0 | 14,0 | 4,0 | 6,0 | 8,0 | |
| MT-W11A | 12,0 | 20,0 | 18,0 | 16,0 | 4,0 | 6,0 | 8,0 | |
| MT-W11A | 14,0 | 22,0 | 20,0 | 18,0 | 4,0 | 6,0 | 8,0 | |
| MT-W11A | 15,0 | 23,0 | 21,0 | 18,0 | 4,0 | 6,0 | 8,0 | |
| MT-W11A | 16,0 | 24,0 | 22,0 | 20,0 | 4,0 | 6,0 | 8,0 | |
| MT-W11A | 18,0 | 26,0 | 24,0 | 22,0 | 4,0 | 6,0 | 8,0 | |
| MT-W11A | 20,0 | 28,0 | 26,0 | 24,0 | 4,0 | 6,0 | 8,0 | |
| MT-W11A | 22,0 | 30,0 | 28,0 | 26,0 | 4,0 | 6,0 | 8,0 | |
| MT-W11A | 24,0 | 32,0 | 30,0 | 28,0 | 4,0 | 6,0 | 8,0 | |
| MT-W11A | 25,0 | 33,0 | 31,0 | 28,0 | 4,0 | 6,0 | 8,0 | |
| MT-W11A | 26,0 | 34,0 | 32,0 | 30,0 | 4,0 | 6,0 | 8,0 | |
| MT-W11A | 28,0 | 36,0 | 34,0 | 32,0 | 4,0 | 6,0 | 8,0 | |
| MT-W11A | 30,0 | 38,0 | 36,0 | 34,0 | 4,0 | 6,0 | 8,0 | |
| MT-W11A | 32,0 | 40,0 | 38,0 | 36,0 | 4,0 | 6,0 | 8,0 | |
| MT-W11A | 35,0 | 43,0 | 41,0 | 38,0 | 4,0 | 6,0 | 8,0 | |
| MT-W11A | 36,0 | 44,0 | 42,0 | 40,0 | 4,0 | 6,0 | 8,0 | |
| MT-W11A | 37,0 | 45,0 | 43,0 | 40,0 | 4,0 | 6,0 | 8,0 | |
| MT-W11A | 38,0 | 46,0 | 44,0 | 42,0 | 4,0 | 6,0 | 8,0 | |
| MT-W11A | 40,0 | 48,0 | 46,0 | 44,0 | 4,0 | 6,0 | 8,0 | |
| MT-W11A | 42,0 | 50,0 | 48,0 | 46,0 | 4,0 | 6,0 | 8,0 | |
| MT-W11A | 45,0 | 53,0 | 51,0 | 48,0 | 4,0 | 6,0 | 8,0 | |
| MT-W11A | 46,0 | 54,0 | 52,0 | 50,0 | 4,0 | 6,0 | 8,0 | |
| MT-W11A | 48,0 | 56,0 | 54,0 | 52,0 | 4,0 | 6,0 | 8,0 | |
| MT-W11A | 50,0 | 58,0 | 56,0 | 54,0 | 4,0 | 6,0 | 8,0 | |
| MT-W11A | 52,0 | 60,0 | 58,0 | 56,0 | 4,0 | 6,0 | 8,0 | |
| MT-W11A | 55,0 | 63,0 | 61,0 | 58,0 | 4,0 | 6,0 | 8,0 | |
| MT-W11A | 56,0 | 64,0 | 62,0 | 60,0 | 4,0 | 6,0 | 8,0 | |
| MT-W11A | 60,0 | 68,0 | 66,0 | 64,0 | 4,0 | 6,0 | 8,0 | |
| MT-W11A | 63,0 | 71,0 | 69,0 | 66,0 | 4,0 | 6,0 | 8,0 | |
| MT-W11A | 65,0 | 73,0 | 71,0 | 68,0 | 4,0 | 6,0 | 8,0 | |
| MT-W11A | 68,0 | 76,0 | 74,0 | 72,0 | 4,0 | 6,0 | 8,0 | |
| MT-W11A | 70,0 | 78,0 | 76,0 | 74,0 | 4,0 | 6,0 | 8,0 | |
| MT-W11A | 75,0 | 83,0 | 81,0 | 78,0 | 4,0 | 6,0 | 8,0 | |
| MT-W11A | 80,0 | 88,0 | 86,0 | 84,0 | 4,0 | 6,0 | 8,0 | |
| MT-W11A | 85,0 | 93,0 | 91,0 | 88,0 | 4,0 | 6,0 | 8,0 | |
| MT-W11A | 90,0 | 98,0 | 96,0 | 94,0 | 4,0 | 6,0 | 8,0 | |
| MT-W11A | 95,0 | 103,0 | 101,0 | 98,0 | 4,0 | 6,0 | 8,0 | |
| MT-W11A | 100,0 | 108,0 | 106,0 | 104,0 | 4,0 | 6,0 | 8,0 | |
| MT-W11A | 105,0 | 117,0 | 114,0 | 110,0 | 6,0 | 8,0 | 11,0 | |
| MT-W11A | 110,0 | 122,0 | 119,0 | 115,0 | 6,0 | 8,0 | 11,0 | |
| MT-W11A | 113,0 | 125,0 | 122,0 | 118,0 | 6,0 | 8,0 | 11,0 | |
| MT-W11A | 115,0 | 127,0 | 124,0 | 120,0 | 6,0 | 8,0 | 11,0 | |
| MT-W11A | 120,0 | 132,0 | 129,0 | 125,0 | 6,0 | 8,0 | 11,0 | |
| MT-W11A | 125,0 | 137,0 | 134,0 | 130,0 | 6,0 | 8,0 | 11,0 | |
| MT-W11A | 130,0 | 142,0 | 139,0 | 135,0 | 6,0 | 8,0 | 11,0 | |
| MT-W11A | 135,0 | 147,0 | 144,0 | 140,0 | 6,0 | 8,0 | 11,0 | |
| MT-W11A | 140,0 | 152,0 | 149,0 | 145,0 | 6,0 | 8,0 | 11,0 | |
| MT-W11A | 142,0 | 154,0 | 151,0 | 147,0 | 6,0 | 8,0 | 11,0 | |
| MT-W11A | 145,0 | 157,0 | 154,0 | 150,0 | 6,0 | 8,0 | 11,0 | |
| MT-W11A | 150,0 | 162,0 | 159,0 | 155,0 | 6,0 | 8,0 | 11,0 | |
| MT-W11A | 155,0 | 167,0 | 164,0 | 160,0 | 6,0 | 8,0 | 11,0 | |
| MT-W11A | 160,0 | 172,0 | 169,0 | 165,0 | 6,0 | 8,0 | 11,0 | |
| MT-W11A | 165,0 | 177,0 | 174,0 | 170,0 | 6,0 | 8,0 | 11,0 | |
| MT-W11A | 170,0 | 182,0 | 179,0 | 175,0 | 6,0 | 8,0 | 11,0 | |
| MT-W11A | 172,0 | 184,0 | 181,0 | 177,0 | 6,0 | 8,0 | 11,0 | |
| MT-W11A | 175,0 | 187,0 | 184,0 | 180,0 | 6,0 | 8,0 | 11,0 | |
| MT-W11A | 180,0 | 192,0 | 189,0 | 185,0 | 6,0 | 8,0 | 11,0 | |
| MT-W11A | 185,0 | 197,0 | 194,0 | 190,0 | 6,0 | 8,0 | 11,0 | |
| MT-W11A | 190,0 | 202,0 | 199,0 | 195,0 | 6,0 | 8,0 | 11,0 | |
| MT-W11A | 192,0 | 204,0 | 201,0 | 197,0 | 6,0 | 8,0 | 11,0 | |
| MT-W11A | 195,0 | 207,0 | 204,0 | 200,0 | 6,0 | 8,0 | 11,0 | |
| MT-W11A | 200,0 | 212,0 | 209,0 | 205,0 | 6,0 | 8,0 | 11,0 | |
| MT-W11A | 205,0 | 220,0 | 216,0 | 212,0 | 6,0 | 10,0 | 13,0 | |
| MT-W11A | 210,0 | 225,0 | 221,0 | 217,0 | 6,0 | 10,0 | 13,0 | |
| MT-W11A | 215,0 | 230,0 | 227,0 | 222,0 | 6,0 | 10,0 | 13,0 | |
| MT-W11A | 220,0 | 235,0 | 231,0 | 227,0 | 6,0 | 10,0 | 13,0 | |
| MT-W11A | 225,0 | 240,0 | 236,0 | 232,0 | 6,0 | 10,0 | 13,0 | |
| MT-W11A | 230,0 | 245,0 | 241,0 | 237,0 | 6,0 | 10,0 | 13,0 | |
| MT-W11A | 235,0 | 250,0 | 247,0 | 242,0 | 6,0 | 10,0 | 13,0 | |
| MT-W11A | 240,0 | 255,0 | 251,0 | 247,0 | 6,0 | 10,0 | 13,0 | |
| MT-W11A | 245,0 | 260,0 | 257,0 | 252,0 | 6,0 | 10,0 | 13,0 | |
| MT-W11A | 250,0 | 265,0 | 261,0 | 257,0 | 6,0 | 10,0 | 13,0 | |
| MT-W11A | 255,0 | 270,0 | 266,0 | 262,0 | 6,0 | 10,0 | 13,0 | |
| MT-W11A | 258,0 | 273,0 | 270,0 | 265,0 | 6,0 | 10,0 | 13,0 | |
| MT-W11A | 260,0 | 275,0 | 271,0 | 267,0 | 6,0 | 10,0 | 13,0 | |
| MT-W11A | 265,0 | 280,0 | 277,0 | 272,0 | 6,0 | 10,0 | 13,0 | |
| MT-W11A | 270,0 | 285,0 | 282,0 | 277,0 | 6,0 | 10,0 | 13,0 | |
| MT-W11A | 275,0 | 290,0 | 286,0 | 282,0 | 6,0 | 10,0 | 13,0 | |
| MT-W11A | 280,0 | 295,0 | 291,0 | 287,0 | 6,0 | 10,0 | 13,0 | |
| MT-W11A | 285,0 | 300,0 | 297,0 | 292,0 | 6,0 | 10,0 | 13,0 | |
| MT-W11A | 290,0 | 305,0 | 301,0 | 297,0 | 6,0 | 10,0 | 13,0 | |
| MT-W11A | 295,0 | 310,0 | 306,0 | 302,0 | 6,0 | 10,0 | 13,0 | |
| MT-W11A | 300,0 | 315,0 | 311,0 | 307,0 | 6,0 | 10,0 | 13,0 | |
| MT-W11A | 310,0 | 325,0 | 321,0 | 317,0 | 6,0 | 10,0 | 13,0 | |
| MT-W11A | 320,0 | 335,0 | 331,0 | 327,0 | 6,0 | 10,0 | 13,0 | |
| MT-W11A | 325,0 | 340,0 | 337,0 | 332,0 | 6,0 | 10,0 | 13,0 | |
| MT-W11A | 330,0 | 345,0 | 342,0 | 337,0 | 6,0 | 10,0 | 13,0 | |
| MT-W11A | 340,0 | 355,0 | 352,0 | 347,0 | 6,0 | 10,0 | 13,0 | |
| MT-W11A | 345,0 | 360,0 | 357,0 | 352,0 | 6,0 | 10,0 | 13,0 | |
| MT-W11A | 350,0 | 365,0 | 361,0 | 357,0 | 6,0 | 10,0 | 13,0 | |
| MT-W11A | 355,0 | 370,0 | 367,0 | 362,0 | 6,0 | 10,0 | 13,0 | |
| MT-W11A | 360,0 | 375,0 | 371,0 | 367,0 | 6,0 | 10,0 | 13,0 | |
| MT-W11A | 370,0 | 385,0 | 381,0 | 377,0 | 6,0 | 10,0 | 13,0 |
