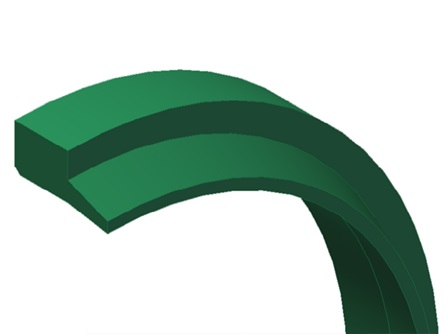

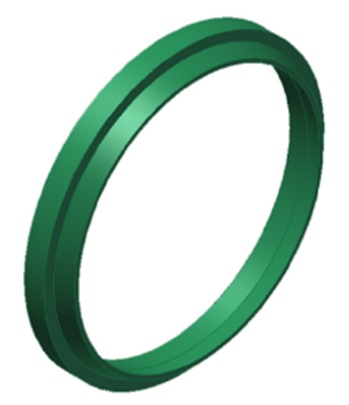

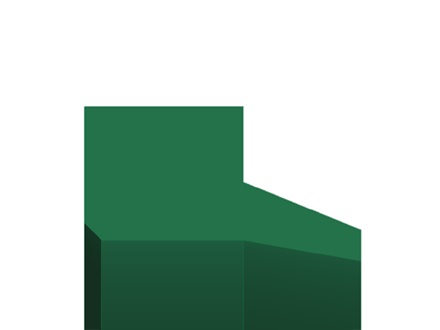

Joint racleur à simple effet, joint racleur avec dimensionnement selon les types courants utilisés aux États-Unis, pour la conception du boîtier selon AN6231.ANSI / B93.35.
Application:
Utilisé avec le joint de jeu de doreurs
Avantage:
Excellente friction, joint double voie
Matériel:
POLYURÉTHANE, CAOUTCHOUC, PU.
| Code MT | DI | DE | B | |
|---|---|---|---|---|
| MT-W09 | 20,0 | 28,0 | 8,0 | |
| MT-W09 | 25,0 | 33,0 | 8,0 | |
| MT-W09 | 28,0 | 36,0 | 8,0 | |
| MT-W09 | 30,0 | 38,0 | 8,0 | |
| MT-W09 | 32,0 | 40,0 | 8,0 | |
| MT-W09 | 35,0 | 43,0 | 8,0 | |
| MT-W09 | 38,0 | 48,0 | 7,0 | |
| MT-W09 | 40,0 | 48,0 | 8,0 | |
| MT-W09 | 44,0 | 54,0 | 7,0 | |
| MT-W09 | 45,0 | 56,0 | 7,0 | |
| MT-W09 | 45,0 | 53,0 | 8,0 | |
| MT-W09 | 48,0 | 60,0 | 10,0 | |
| MT-W09 | 50,0 | 61,0 | 7,0 | |
| MT-W09 | 50,0 | 59,0 | 9,0 | |
| MT-W09 | 50,0 | 58,0 | 8,0 | |
| MT-W09 | 55,0 | 66,0 | 7,0 | |
| MT-W09 | 56,0 | 66,0 | 9,0 | |
| MT-W09 | 60,0 | 70,0 | 9,0 | |
| MT-W09 | 60,0 | 71,0 | 9,0 | |
| MT-W09 | 60,0 | 70,0 | 7,0 | |
| MT-W09 | 60,0 | 70,0 | 10,0 | |
| MT-W09 | 63,0 | 74,0 | 7,0 | |
| MT-W09 | 64,0 | 76,0 | 10,0 | |
| MT-W09 | 63,0 | 73,0 | 10,0 | |
| MT-W09 | 65,0 | 75,0 | 10,0 | |
| MT-W09 | 70,0 | 80,0 | 9,0 | |
| MT-W09 | 70,0 | 81,0 | 7,0 | |
| MT-W09 | 70,0 | 82,0 | 12,0 | |
| MT-W09 | 75,0 | 87,0 | 12,0 | |
| MT-W09 | 80,0 | 90,0 | 9,0 | |
| MT-W09 | 80,0 | 92,0 | 12,0 | |
| MT-W09 | 80,0 | 90,0 | 10,0 | |
| MT-W09 | 85,0 | 98,0 | 12,0 | |
| MT-W09 | 90,0 | 100,0 | 9,0 | |
| MT-W09 | 90,0 | 102,0 | 12,0 | |
| MT-W09 | 95,0 | 107,0 | 12,0 | |
| MT-W09 | 100,0 | 112,0 | 12,0 | |
| MT-W09 | 100,0 | 115,0 | 14,0 | |
| MT-W09 | 105,0 | 120,0 | 12,0 | |
| MT-W09 | 110,0 | 125,0 | 14,0 | |
| MT-W09 | 110,0 | 122,0 | 12,0 | |
| MT-W09 | 114,0 | 133,0 | 14,0 | |
| MT-W09 | 115,0 | 127,0 | 12,0 | |
| MT-W09 | 120,0 | 132,0 | 12,0 | |
| MT-W09 | 125,0 | 140,0 | 14,0 | |
| MT-W09 | 125,0 | 140,0 | 16,0 | |
| MT-W09 | 135,0 | 150,0 | 14,0 | |
| MT-W09 | 140,0 | 155,0 | 14,0 | |
| MT-W09 | 140,0 | 155,0 | 16,0 | |
| MT-W09 | 145,0 | 154,0 | 7,0 | |
| MT-W09 | 150,0 | 165,0 | 12,0 | |
| MT-W09 | 150,0 | 166,0 | 12,0 | |
| MT-W09 | 160,0 | 175,0 | 16,0 | |
| MT-W09 | 160,0 | 172,0 | 12,0 | |
| MT-W09 | 180,0 | 200,0 | 18,0 | |
| MT-W09 | 185,0 | 205,0 | 18,0 | |
| MT-W09 | 190,0 | 205,0 | 14,0 | |
| MT-W09 | 195,0 | 210,0 | 16,0 | |
| MT-W09 | 200,0 | 220,0 | 18,0 | |
| MT-W09 | 210,0 | 230,0 | 18,0 | |
| MT-W09 | 215,0 | 237,0 | 18,0 | |
| MT-W09 | 220,0 | 240,0 | 18,0 | |
| MT-W09 | 230,0 | 250,0 | 18,0 | |
| MT-W09 | 240,0 | 260,0 | 18,0 | |
| MT-W09 | 245,0 | 265,0 | 18,0 | |
| MT-W09 | 260,0 | 280,0 | 18,0 | |
| MT-W09 | 280,0 | 300,0 | 15,0 | |
| MT-W09 | 285,0 | 305,0 | 18,0 | |
| MT-W09 | 290,0 | 310,0 | 18,0 | |
| MT-W09 | 320,0 | 340,0 | 18,0 | |
| MT-W09 | 400,0 | 420,0 | 18,0 | |
| MT-W09 | 450,0 | 470,0 | 18,0 |
