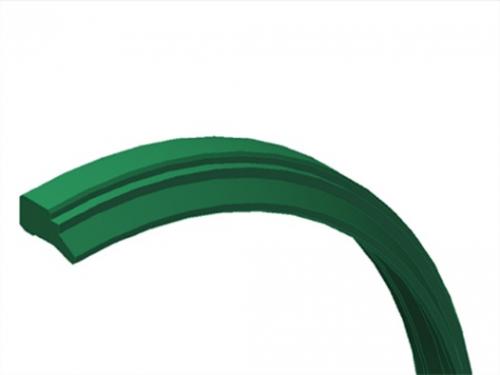

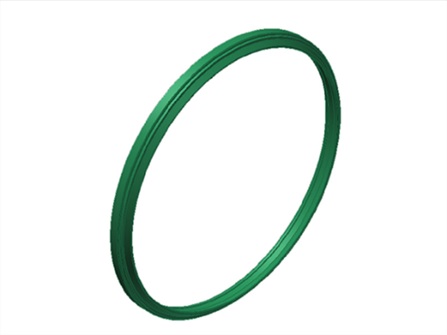

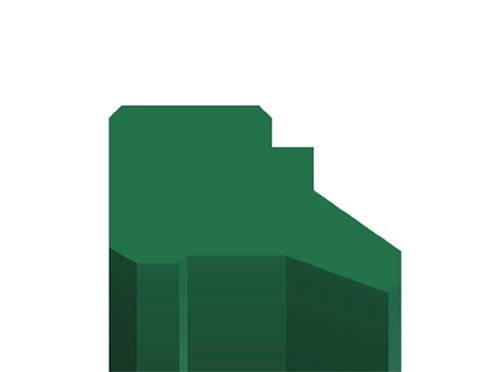

Installation hydraulique à simple effet, joint racleur, diamètre extérieur d’extrusion. Le bord d’essuie-glace assure une protection fiable contre la pénétration de poussière et de saleté. Pour boîtiers selon ISO6195-A.
Application:
Joint racleur standard
Avantage:
Installation facile, excellente performance anti-friction et contre la pénétration de la poussière et de la saleté
Matériel:
POLYURÉTHANE, CAOUTCHOUC, PU.
| Code MT | DI | DE | S1 | B | |
|---|---|---|---|---|---|
| MT-W01A | 3,0 | 7,0 | 3,0 | 4,0 | |
| MT-W01A | 4,0 | 12,0 | 4,0 | 7,0 | |
| MT-W01A | 5,0 | 8,0 | 2,0 | 4,0 | |
| MT-W01A | 6,0 | 10,0 | 2,0 | 4,0 | |
| MT-W01A | 8,0 | 16,0 | 4,0 | 7,0 | |
| MT-W01A | 10,0 | 18,0 | 4,0 | 7,0 | |
| MT-W01A | 12,0 | 20,0 | 4,0 | 7,0 | |
| MT-W01A | 12,0 | 18,0 | 3,0 | 5,0 | |
| MT-W01A | 14,0 | 22,0 | 4,0 | 7,0 | |
| MT-W01A | 14,0 | 20,0 | 3,0 | 5,0 | |
| MT-W01A | 14,0 | 20,0 | 3,0 | 5,0 | |
| MT-W01A | 15,0 | 23,0 | 4,0 | 7,0 | |
| MT-W01A | 16,0 | 24,0 | 4,0 | 7,0 | |
| MT-W01A | 17,0 | 25,0 | 4,0 | 7,0 | |
| MT-W01A | 18,0 | 26,0 | 4,0 | 7,0 | |
| MT-W01A | 20,0 | 28,0 | 4,0 | 7,0 | |
| MT-W01A | 22,0 | 30,0 | 4,0 | 7,0 | |
| MT-W01A | 22,0 | 32,0 | 4,0 | 7,0 | |
| MT-W01A | 23,0 | 31,0 | 4,0 | 7,0 | |
| MT-W01A | 24,0 | 32,0 | 4,0 | 7,0 | |
| MT-W01A | 25,0 | 33,0 | 4,0 | 7,0 | |
| MT-W01A | 25,0 | 35,0 | 4,0 | 7,0 | |
| MT-W01A | 25,0 | 34,0 | 5,0 | 8,0 | |
| MT-W01A | 26,0 | 34,0 | 4,0 | 7,0 | |
| MT-W01A | 28,0 | 36,0 | 4,0 | 7,0 | |
| MT-W01A | 30,0 | 38,0 | 4,0 | 7,0 | |
| MT-W01A | 30,0 | 40,0 | 4,0 | 7,0 | |
| MT-W01A | 30,0 | 36,0 | 3,0 | 5,0 | |
| MT-W01A | 32,0 | 40,0 | 4,0 | 7,0 | |
| MT-W01A | 33,0 | 41,0 | 4,0 | 7,0 | |
| MT-W01A | 34,0 | 42,0 | 4,0 | 7,0 | |
| MT-W01A | 35,0 | 43,0 | 4,0 | 7,0 | |
| MT-W01A | 35,0 | 45,0 | 4,0 | 7,0 | |
| MT-W01A | 36,0 | 44,0 | 4,0 | 7,0 | |
| MT-W01A | 36,0 | 42,0 | 3,0 | 5,0 | |
| MT-W01A | 38,0 | 46,0 | 4,0 | 7,0 | |
| MT-W01A | 40,0 | 48,0 | 4,0 | 7,0 | |
| MT-W01A | 40,0 | 50,0 | 4,0 | 7,0 | |
| MT-W01A | 42,0 | 50,0 | 4,0 | 7,0 | |
| MT-W01A | 44,0 | 52,0 | 4,0 | 7,0 | |
| MT-W01A | 45,0 | 53,0 | 4,0 | 7,0 | |
| MT-W01A | 45,0 | 56,0 | 5,0 | 8,0 | |
| MT-W01A | 48,0 | 56,0 | 4,0 | 7,0 | |
| MT-W01A | 50,0 | 58,0 | 4,0 | 7,0 | |
| MT-W01A | 50,0 | 62,0 | 6,0 | 10,0 | |
| MT-W01A | 52,0 | 60,0 | 4,0 | 7,0 | |
| MT-W01A | 54,0 | 62,0 | 4,0 | 7,0 | |
| MT-W01A | 55,0 | 63,0 | 4,0 | 7,0 | |
| MT-W01A | 56,0 | 64,0 | 4,0 | 7,0 | |
| MT-W01A | 57,0 | 65,0 | 4,0 | 7,0 | |
| MT-W01A | 60,0 | 68,0 | 4,0 | 7,0 | |
| MT-W01A | 60,0 | 72,0 | 7,0 | 10,0 | |
| MT-W01A | 62,0 | 70,0 | 4,0 | 7,0 | |
| MT-W01A | 63,0 | 71,0 | 4,0 | 7,0 | |
| MT-W01A | 65,0 | 73,0 | 4,0 | 7,0 | |
| MT-W01A | 68,0 | 76,0 | 4,0 | 7,0 | |
| MT-W01A | 70,0 | 78,0 | 4,0 | 7,0 | |
| MT-W01A | 75,0 | 83,0 | 4,0 | 7,0 | |
| MT-W01A | 78,0 | 86,0 | 4,0 | 7,0 | |
| MT-W01A | 80,0 | 88,0 | 4,0 | 7,0 | |
| MT-W01A | 85,0 | 93,0 | 4,0 | 7,0 | |
| MT-W01A | 88,0 | 96,0 | 4,0 | 7,0 | |
| MT-W01A | 90,0 | 98,0 | 4,0 | 7,0 | |
| MT-W01A | 92,0 | 100,0 | 4,0 | 7,0 | |
| MT-W01A | 95,0 | 103,0 | 4,0 | 7,0 | |
| MT-W01A | 100,0 | 108,0 | 4,0 | 7,0 | |
| MT-W01A | 102,0 | 114,0 | 6,0 | 10,0 | |
| MT-W01A | 106,0 | 118,0 | 5,0 | 10,0 | |
| MT-W01A | 110,0 | 118,0 | 4,0 | 7,0 | |
| MT-W01A | 110,0 | 122,0 | 6,0 | 10,0 | |
| MT-W01A | 115,0 | 127,0 | 6,0 | 10,0 | |
| MT-W01A | 117,0 | 129,0 | 5,0 | 10,0 | |
| MT-W01A | 120,0 | 132,0 | 6,0 | 10,0 | |
| MT-W01A | 125,0 | 137,0 | 6,0 | 10,0 | |
| MT-W01A | 128,0 | 140,0 | 6,0 | 10,0 | |
| MT-W01A | 130,0 | 142,0 | 6,0 | 10,0 | |
| MT-W01A | 135,0 | 147,0 | 6,0 | 10,0 | |
| MT-W01A | 140,0 | 152,0 | 6,0 | 10,0 | |
| MT-W01A | 148,0 | 156,0 | 4,0 | 7,0 | |
| MT-W01A | 150,0 | 162,0 | 6,0 | 10,0 | |
| MT-W01A | 152,0 | 164,0 | 6,0 | 10,0 | |
| MT-W01A | 155,0 | 167,0 | 6,0 | 10,0 | |
| MT-W01A | 160,0 | 172,0 | 6,0 | 10,0 | |
| MT-W01A | 165,0 | 177,0 | 6,0 | 10,0 | |
| MT-W01A | 180,0 | 192,0 | 6,0 | 10,0 | |
| MT-W01A | 190,0 | 202,0 | 6,0 | 10,0 | |
| MT-W01A | 200,0 | 212,0 | 6,0 | 10,0 | |
| MT-W01A | 210,0 | 225,0 | 6,0 | 13,0 | |
| MT-W01A | 210,0 | 218,0 | 4,0 | 7,0 | |
| MT-W01A | 220,0 | 235,0 | 6,0 | 13,0 | |
| MT-W01A | 250,0 | 265,0 | 6,0 | 13,0 |
