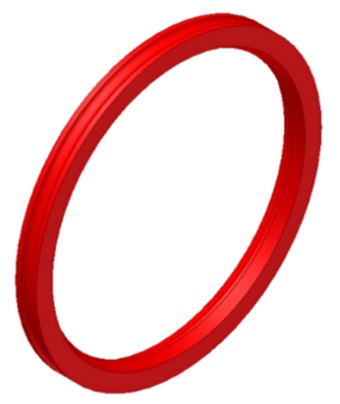

Hydraulique à double effet, couramment utilisé comme joint torique et joint torique pour le remplacement de la bague d’appui, la torsion de protestation et l’anti-extrusion. Principalement des applications dans l’industrie pharmaceutique et alimentaire.
| Code MT | DE | DI | B | b | |
|---|---|---|---|---|---|
| MT-R35 | 14,0 | 11,0 | 3,0 | 2,0 | |
| MT-R35 | 16,0 | 13,0 | 3,0 | 2,0 | |
| MT-R35 | 17,0 | 14,0 | 4,0 | 3,0 | |
| MT-R35 | 19,0 | 16,0 | 4,0 | 3,0 | |
| MT-R35 | 20,0 | 16,0 | 3,0 | 3,0 | |
| MT-R35 | 23,0 | 19,0 | 5,0 | 4,0 | |
| MT-R35 | 26,0 | 21,0 | 4,0 | 3,0 | |
| MT-R35 | 30,0 | 25,0 | 4,0 | 3,0 | |
| MT-R35 | 32,0 | 27,0 | 4,0 | 3,0 | |
| MT-R35 | 32,0 | 28,0 | 3,0 | 3,0 | |
| MT-R35 | 33,0 | 29,0 | 3,0 | 3,0 | |
| MT-R35 | 40,0 | 34,0 | 5,0 | 4,0 | |
| MT-R35 | 40,0 | 33,0 | 3,0 | 3,0 | |
| MT-R35 | 40,0 | 36,0 | 3,0 | 3,0 | |
| MT-R35 | 41,0 | 37,0 | 3,0 | 3,0 | |
| MT-R35 | 42,0 | 38,0 | 4,0 | 3,0 | |
| MT-R35 | 45,0 | 40,0 | 4,0 | 4,0 | |
| MT-R35 | 50,0 | 44,0 | 6,0 | 5,0 | |
| MT-R35 | 50,0 | 44,0 | 5,0 | 4,0 | |
| MT-R35 | 50,0 | 45,0 | 4,0 | 3,0 | |
| MT-R35 | 51,0 | 46,0 | 4,0 | 3,0 | |
| MT-R35 | 52,0 | 48,0 | 4,0 | 3,0 | |
| MT-R35 | 56,0 | 51,0 | 4,0 | 3,0 | |
| MT-R35 | 57,0 | 52,0 | 4,0 | 3,0 | |
| MT-R35 | 60,0 | 52,0 | 6,0 | 5,0 | |
| MT-R35 | 60,0 | 54,0 | 5,0 | 4,0 | |
| MT-R35 | 60,0 | 55,0 | 6,0 | 5,0 | |
| MT-R35 | 61,0 | 56,0 | 4,0 | 4,0 | |
| MT-R35 | 63,0 | 57,0 | 6,0 | 5,0 | |
| MT-R35 | 63,0 | 58,0 | 4,0 | 4,0 | |
| MT-R35 | 64,0 | 58,0 | 4,0 | 4,0 | |
| MT-R35 | 64,0 | 58,0 | 5,0 | 4,0 | |
| MT-R35 | 65,0 | 57,0 | 6,0 | 5,0 | |
| MT-R35 | 65,0 | 59,0 | 5,0 | 4,0 | |
| MT-R35 | 66,0 | 60,0 | 4,0 | 4,0 | |
| MT-R35 | 70,0 | 64,0 | 6,0 | 5,0 | |
| MT-R35 | 70,0 | 64,0 | 4,0 | 4,0 | |
| MT-R35 | 71,0 | 66,0 | 4,0 | 4,0 | |
| MT-R35 | 71,0 | 65,0 | 5,0 | 4,0 | |
| MT-R35 | 75,0 | 70,0 | 6,0 | 6,0 | |
| MT-R35 | 76,0 | 70,0 | 4,0 | 4,0 | |
| MT-R35 | 80,0 | 75,0 | 6,0 | 6,0 | |
| MT-R35 | 80,0 | 74,0 | 4,0 | 4,0 | |
| MT-R35 | 81,0 | 73,0 | 6,0 | 5,0 | |
| MT-R35 | 81,0 | 76,0 | 4,0 | 4,0 | |
| MT-R35 | 85,0 | 81,0 | 5,0 | 4,0 | |
| MT-R35 | 88,0 | 83,0 | 4,0 | 3,0 | |
| MT-R35 | 90,0 | 80,0 | 8,0 | 7,0 | |
| MT-R35 | 90,0 | 84,0 | 4,0 | 4,0 | |
| MT-R35 | 91,0 | 86,0 | 4,0 | 4,0 | |
| MT-R35 | 96,0 | 88,0 | 6,0 | 5,0 | |
| MT-R35 | 95,0 | 86,0 | 9,0 | 8,0 | |
| MT-R35 | 95,0 | 88,0 | 7,0 | 6,0 | |
| MT-R35 | 100,0 | 90,0 | 8,0 | 7,0 | |
| MT-R35 | 100,0 | 91,0 | 9,0 | 8,0 | |
| MT-R35 | 100,0 | 94,0 | 5,0 | 4,0 | |
| MT-R35 | 100,0 | 90,0 | 9,0 | 8,0 | |
| MT-R35 | 100,0 | 90,0 | 9,0 | 8,0 | |
| MT-R35 | 101,0 | 95,0 | 5,0 | 4,0 | |
| MT-R35 | 105,0 | 95,0 | 8,0 | 7,0 | |
| MT-R35 | 110,0 | 101,0 | 9,0 | 8,0 | |
| MT-R35 | 110,0 | 104,0 | 5,0 | 4,0 | |
| MT-R35 | 115,0 | 109,0 | 6,0 | 5,0 | |
| MT-R35 | 116,0 | 110,0 | 5,0 | 4,0 | |
| MT-R35 | 120,0 | 112,0 | 6,0 | 6,0 | |
| MT-R35 | 120,0 | 111,0 | 8,0 | 7,0 | |
| MT-R35 | 121,0 | 116,0 | 4,0 | 4,0 | |
| MT-R35 | 125,0 | 116,0 | 9,0 | 8,0 | |
| MT-R35 | 125,0 | 119,0 | 5,0 | 4,0 | |
| MT-R35 | 128,0 | 123,0 | 4,0 | 4,0 | |
| MT-R35 | 130,0 | 124,0 | 5,0 | 4,0 | |
| MT-R35 | 130,0 | 121,0 | 8,0 | 7,0 | |
| MT-R35 | 134,0 | 125,0 | 8,0 | 7,0 | |
| MT-R35 | 135,0 | 128,0 | 6,0 | 5,0 | |
| MT-R35 | 140,0 | 134,0 | 6,0 | 5,0 | |
| MT-R35 | 140,0 | 134,0 | 5,0 | 4,0 | |
| MT-R35 | 150,0 | 142,0 | 9,0 | 8,0 | |
| MT-R35 | 150,0 | 144,0 | 5,0 | 4,0 | |
| MT-R35 | 150,0 | 141,0 | 10,0 | 8,0 | |
| MT-R35 | 160,0 | 150,0 | 8,0 | 7,0 | |
| MT-R35 | 160,0 | 154,0 | 5,0 | 4,0 | |
| MT-R35 | 160,0 | 149,0 | 9,0 | 8,0 | |
| MT-R35 | 162,0 | 154,0 | 8,0 | 7,0 | |
| MT-R35 | 165,0 | 155,0 | 8,0 | 7,0 | |
| MT-R35 | 165,0 | 159,0 | 6,0 | 5,0 | |
| MT-R35 | 170,0 | 160,0 | 8,0 | 7,0 | |
| MT-R35 | 175,0 | 165,0 | 8,0 | 7,0 | |
| MT-R35 | 180,0 | 170,0 | 8,0 | 7,0 | |
| MT-R35 | 180,0 | 171,0 | 7,0 | 6,0 | |
| MT-R35 | 183,0 | 175,0 | 8,0 | 7,0 | |
| MT-R35 | 185,0 | 175,0 | 8,0 | 7,0 | |
| MT-R35 | 190,0 | 180,0 | 8,0 | 7,0 | |
| MT-R35 | 195,0 | 185,0 | 8,0 | 7,0 | |
| MT-R35 | 200,0 | 191,0 | 9,0 | 8,0 | |
| MT-R35 | 200,0 | 190,0 | 8,0 | 7,0 | |
| MT-R35 | 200,0 | 191,0 | 7,0 | 6,0 | |
| MT-R35 | 200,0 | 191,0 | 9,0 | 8,0 | |
| MT-R35 | 205,0 | 195,0 | 8,0 | 7,0 | |
| MT-R35 | 210,0 | 200,0 | 8,0 | 7,0 | |
| MT-R35 | 215,0 | 205,0 | 8,0 | 7,0 | |
| MT-R35 | 220,0 | 210,0 | 8,0 | 7,0 | |
| MT-R35 | 222,0 | 214,0 | 8,0 | 7,0 | |
| MT-R35 | 225,0 | 215,0 | 8,0 | 7,0 | |
| MT-R35 | 230,0 | 220,0 | 8,0 | 7,0 | |
| MT-R35 | 230,0 | 222,0 | 8,0 | 7,0 | |
| MT-R35 | 235,0 | 225,0 | 8,0 | 7,0 | |
| MT-R35 | 240,0 | 231,0 | 9,0 | 8,0 | |
| MT-R35 | 250,0 | 238,0 | 12,0 | 11,0 | |
| MT-R35 | 252,0 | 242,0 | 8,0 | 7,0 | |
| MT-R35 | 255,0 | 240,0 | 13,0 | 11,0 | |
| MT-R35 | 275,0 | 263,0 | 12,0 | 11,0 | |
| MT-R35 | 280,0 | 271,0 | 9,0 | 8,0 | |
| MT-R35 | 286,0 | 263,0 | 12,0 | 10,0 | |
| MT-R35 | 300,0 | 283,0 | 16,0 | 14,0 | |
| MT-R35 | 305,0 | 290,0 | 13,0 | 11,0 | |
| MT-R35 | 350,0 | 333,0 | 16,0 | 14,0 | |
| MT-R35 | 355,0 | 340,0 | 13,0 | 11,0 |
