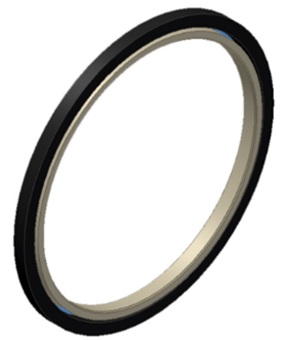

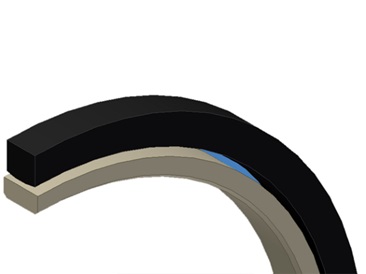

Joint de tige hydraulique en PTFE à double effet. Semblable à MT-R09-D, mais conception spéciale pour charges lourdes pour l’hydraulique de l’industrie lourde ou pour des dimensions de boîtier spéciales.
Application:
Fit pour vérin hydraulique et pneumatique
Avantage:
Ajustement stable dans le boîtier, excellente performance d’étanchéité. Large plage de température
Matériel:
PU ou PTFE + NBR ou FKM
| Code MT | DE | DI | B | |
|---|---|---|---|---|
| MT-R09DH | 8,0 | 5,0 | 2,0 | |
| MT-R09DH | 10,0 | 5,0 | 2,0 | |
| MT-R09DH | 12,0 | 7,0 | 2,0 | |
| MT-R09DH | 14,0 | 9,0 | 2,0 | |
| MT-R09DH | 15,0 | 8,0 | 3,0 | |
| MT-R09DH | 16,0 | 8,0 | 3,0 | |
| MT-R09DH | 18,0 | 10,0 | 3,0 | |
| MT-R09DH | 18,0 | 13,0 | 2,0 | |
| MT-R09DH | 20,0 | 12,0 | 3,0 | |
| MT-R09DH | 20,0 | 15,0 | 2,0 | |
| MT-R09DH | 22,0 | 15,0 | 3,0 | |
| MT-R09DH | 24,0 | 16,0 | 3,0 | |
| MT-R09DH | 25,0 | 14,0 | 4,0 | |
| MT-R09DH | 25,0 | 18,0 | 3,0 | |
| MT-R09DH | 30,0 | 22,0 | 3,0 | |
| MT-R09DH | 32,0 | 21,0 | 4,0 | |
| MT-R09DH | 32,0 | 24,0 | 3,0 | |
| MT-R09DH | 35,0 | 28,0 | 3,0 | |
| MT-R09DH | 35,0 | 30,0 | 2,0 | |
| MT-R09DH | 36,0 | 28,0 | 3,0 | |
| MT-R09DH | 38,0 | 34,0 | 4,0 | |
| MT-R09DH | 40,0 | 24,0 | 6,0 | |
| MT-R09DH | 40,0 | 29,0 | 4,0 | |
| MT-R09DH | 40,0 | 32,0 | 3,0 | |
| MT-R09DH | 42,0 | 31,0 | 4,0 | |
| MT-R09DH | 45,0 | 34,0 | 4,0 | |
| MT-R09DH | 48,0 | 37,0 | 4,0 | |
| MT-R09DH | 50,0 | 34,0 | 6,0 | |
| MT-R09DH | 50,0 | 39,0 | 4,0 | |
| MT-R09DH | 52,0 | 41,0 | 4,0 | |
| MT-R09DH | 55,0 | 44,0 | 4,0 | |
| MT-R09DH | 57,0 | 46,0 | 4,0 | |
| MT-R09DH | 58,0 | 47,0 | 4,0 | |
| MT-R09DH | 60,0 | 44,0 | 6,0 | |
| MT-R09DH | 60,0 | 49,0 | 4,0 | |
| MT-R09DH | 63,0 | 48,0 | 6,0 | |
| MT-R09DH | 63,0 | 52,0 | 4,0 | |
| MT-R09DH | 63,0 | 56,0 | 3,0 | |
| MT-R09DH | 65,0 | 50,0 | 6,0 | |
| MT-R09DH | 65,0 | 54,0 | 4,0 | |
| MT-R09DH | 68,0 | 57,0 | 4,0 | |
| MT-R09DH | 70,0 | 54,0 | 6,0 | |
| MT-R09DH | 70,0 | 59,0 | 4,0 | |
| MT-R09DH | 75,0 | 60,0 | 6,0 | |
| MT-R09DH | 75,0 | 64,0 | 4,0 | |
| MT-R09DH | 80,0 | 59,0 | 8,0 | |
| MT-R09DH | 80,0 | 64,0 | 6,0 | |
| MT-R09DH | 80,0 | 69,0 | 4,0 | |
| MT-R09DH | 82,0 | 67,0 | 6,0 | |
| MT-R09DH | 85,0 | 64,0 | 8,0 | |
| MT-R09DH | 85,0 | 70,0 | 6,0 | |
| MT-R09DH | 85,0 | 74,0 | 4,0 | |
| MT-R09DH | 90,0 | 69,0 | 8,0 | |
| MT-R09DH | 90,0 | 74,0 | 6,0 | |
| MT-R09DH | 90,0 | 79,0 | 5,0 | |
| MT-R09DH | 95,0 | 74,0 | 4,0 | |
| MT-R09DH | 95,0 | 80,0 | 6,0 | |
| MT-R09DH | 100,0 | 79,0 | 8,0 | |
| MT-R09DH | 100,0 | 84,0 | 6,0 | |
| MT-R09DH | 100,0 | 89,0 | 4,0 | |
| MT-R09DH | 102,0 | 86,0 | 6,0 | |
| MT-R09DH | 105,0 | 90,0 | 6,0 | |
| MT-R09DH | 108,0 | 92,0 | 6,0 | |
| MT-R09DH | 110,0 | 89,0 | 8,0 | |
| MT-R09DH | 110,0 | 94,0 | 6,0 | |
| MT-R09DH | 110,0 | 99,0 | 4,0 | |
| MT-R09DH | 115,0 | 94,0 | 8,0 | |
| MT-R09DH | 115,0 | 100,0 | 6,0 | |
| MT-R09DH | 120,0 | 99,0 | 8,0 | |
| MT-R09DH | 120,0 | 104,0 | 6,0 | |
| MT-R09DH | 120,0 | 109,0 | 6,0 | |
| MT-R09DH | 125,0 | 104,0 | 8,0 | |
| MT-R09DH | 125,0 | 110,0 | 6,0 | |
| MT-R09DH | 125,0 | 114,0 | 4,0 | |
| MT-R09DH | 127,0 | 112,0 | 6,0 | |
| MT-R09DH | 130,0 | 109,0 | 8,0 | |
| MT-R09DH | 130,0 | 114,0 | 6,0 | |
| MT-R09DH | 135,0 | 114,0 | 8,0 | |
| MT-R09DH | 140,0 | 119,0 | 8,0 | |
| MT-R09DH | 140,0 | 124,0 | 6,0 | |
| MT-R09DH | 140,0 | 129,0 | 4,0 | |
| MT-R09DH | 145,0 | 124,0 | 8,0 | |
| MT-R09DH | 150,0 | 129,0 | 8,0 | |
| MT-R09DH | 150,0 | 134,0 | 6,0 | |
| MT-R09DH | 155,0 | 134,0 | 8,0 | |
| MT-R09DH | 160,0 | 139,0 | 8,0 | |
| MT-R09DH | 165,0 | 144,0 | 8,0 | |
| MT-R09DH | 170,0 | 149,0 | 8,0 | |
| MT-R09DH | 175,0 | 154,0 | 8,0 | |
| MT-R09DH | 180,0 | 159,0 | 8,0 | |
| MT-R09DH | 185,0 | 164,0 | 8,0 | |
| MT-R09DH | 185,0 | 170,0 | 6,0 | |
| MT-R09DH | 190,0 | 169,0 | 8,0 | |
| MT-R09DH | 195,0 | 174,0 | 8,0 | |
| MT-R09DH | 200,0 | 179,0 | 8,0 | |
| MT-R09DH | 200,0 | 184,0 | 6,0 | |
| MT-R09DH | 205,0 | 184,0 | 8,0 | |
| MT-R09DH | 210,0 | 189,0 | 8,0 | |
| MT-R09DH | 215,0 | 194,0 | 8,0 | |
| MT-R09DH | 220,0 | 199,0 | 8,0 | |
| MT-R09DH | 225,0 | 204,0 | 8,0 | |
| MT-R09DH | 230,0 | 209,0 | 8,0 | |
| MT-R09DH | 240,0 | 219,0 | 8,0 | |
| MT-R09DH | 245,0 | 224,0 | 8,0 | |
| MT-R09DH | 250,0 | 229,0 | 8,0 | |
| MT-R09DH | 254,0 | 233,0 | 8,0 | |
| MT-R09DH | 255,0 | 234,0 | 8,0 | |
| MT-R09DH | 260,0 | 239,0 | 8,0 | |
| MT-R09DH | 265,0 | 244,0 | 8,0 | |
| MT-R09DH | 270,0 | 249,0 | 8,0 | |
| MT-R09DH | 275,0 | 254,0 | 8,0 | |
| MT-R09DH | 280,0 | 259,0 | 8,0 | |
| MT-R09DH | 290,0 | 269,0 | 8,0 | |
| MT-R09DH | 300,0 | 276,0 | 8,0 | |
| MT-R09DH | 300,0 | 279,0 | 8,0 | |
| MT-R09DH | 305,0 | 284,0 | 8,0 | |
| MT-R09DH | 310,0 | 289,0 | 8,0 | |
| MT-R09DH | 315,0 | 294,0 | 8,0 | |
| MT-R09DH | 320,0 | 296,0 | 8,0 | |
| MT-R09DH | 320,0 | 299,0 | 8,0 | |
| MT-R09DH | 325,0 | 300,0 | 8,0 | |
| MT-R09DH | 325,0 | 304,0 | 8,0 | |
| MT-R09DH | 330,0 | 306,0 | 8,0 | |
| MT-R09DH | 340,0 | 316,0 | 8,0 | |
| MT-R09DH | 350,0 | 326,0 | 8,0 | |
| MT-R09DH | 360,0 | 336,0 | 8,0 | |
| MT-R09DH | 365,0 | 340,0 | 8,0 | |
| MT-R09DH | 370,0 | 346,0 | 8,0 | |
| MT-R09DH | 380,0 | 356,0 | 8,0 | |
| MT-R09DH | 390,0 | 366,0 | 8,0 | |
| MT-R09DH | 400,0 | 376,0 | 8,0 |
