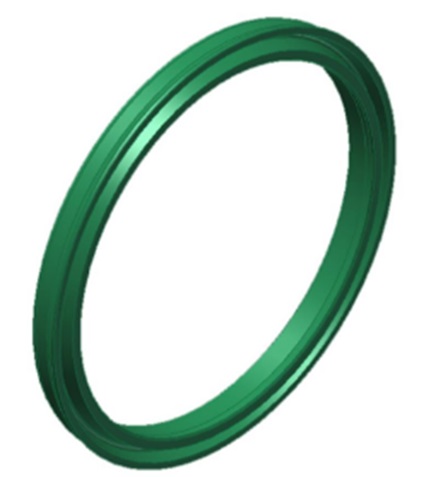

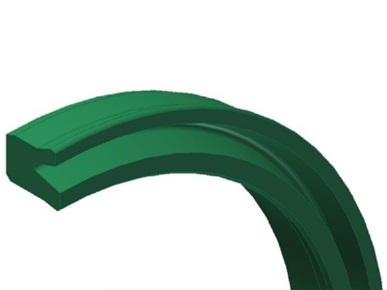

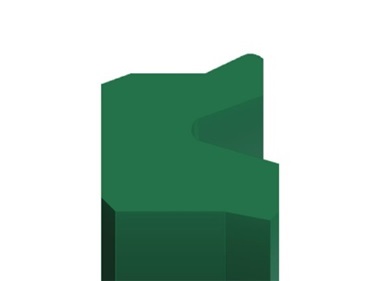

Pneumatique simple effet. La lèvre de conception spéciale garde le film d’huile lubrifiée, de bonnes performances pour les applications lubrifiées ou non lubrifiées dans les applications pneumatiques.
Application:
Pour vérin hydraulique, pneumatique
Avantage:
Ajustement stable dans le boîtier, excellente performance d’étanchéité. Large plage de température
Matériel:
POLYURÉTHANE, CAOUTCHOUC.
| Code MT | DE | DI | B | |
|---|---|---|---|---|
| MT-P05 | 6,0 | 2,0 | 5,0 | |
| MT-P05 | 9,0 | 4,0 | 4,0 | |
| MT-P05 | 9,0 | 4,0 | 7,0 | |
| MT-P05 | 10,0 | 5,0 | 8,0 | |
| MT-P05 | 12,0 | 7,0 | 3,0 | |
| MT-P05 | 12,0 | 4,0 | 4,0 | |
| MT-P05 | 13,0 | 6,0 | 5,0 | |
| MT-P05 | 12,0 | 5,0 | 8,0 | |
| MT-P05 | 13,0 | 4,0 | 4,0 | |
| MT-P05 | 14,0 | 6,0 | 9,0 | |
| MT-P05 | 14,0 | 8,0 | 5,0 | |
| MT-P05 | 14,0 | 8,0 | 5,0 | |
| MT-P05 | 14,0 | 6,0 | 7,0 | |
| MT-P05 | 15,0 | 9,0 | 6,0 | |
| MT-P05 | 16,0 | 6,0 | 11,0 | |
| MT-P05 | 16,0 | 10,0 | 4,0 | |
| MT-P05 | 16,0 | 10,0 | 6,0 | |
| MT-P05 | 16,0 | 9,0 | 6,0 | |
| MT-P05 | 16,0 | 10,0 | 9,0 | |
| MT-P05 | 16,0 | 8,0 | 6,0 | |
| MT-P05 | 16,0 | 10,0 | 4,0 | |
| MT-P05 | 16,0 | 11,0 | 4,0 | |
| MT-P05 | 17,0 | 12,0 | 4,0 | |
| MT-P05 | 19,0 | 13,0 | 4,0 | |
| MT-P05 | 20,0 | 14,0 | 6,0 | |
| MT-P05 | 20,0 | 14,0 | 5,0 | |
| MT-P05 | 20,0 | 14,0 | 3,0 | |
| MT-P05 | 20,0 | 12,0 | 6,0 | |
| MT-P05 | 21,0 | 14,0 | 7,0 | |
| MT-P05 | 22,0 | 13,0 | 8,0 | |
| MT-P05 | 22,0 | 10,0 | 9,0 | |
| MT-P05 | 22,0 | 13,0 | 7,0 | |
| MT-P05 | 22,0 | 16,0 | 6,0 | |
| MT-P05 | 22,0 | 16,0 | 4,0 | |
| MT-P05 | 25,0 | 18,0 | 6,0 | |
| MT-P05 | 25,0 | 19,0 | 4,0 | |
| MT-P05 | 25,0 | 19,0 | 7,0 | |
| MT-P05 | 25,0 | 16,0 | 7,0 | |
| MT-P05 | 25,0 | 15,0 | 6,0 | |
| MT-P05 | 25,0 | 17,0 | 6,0 | |
| MT-P05 | 26,0 | 18,0 | 8,0 | |
| MT-P05 | 26,0 | 18,0 | 6,0 | |
| MT-P05 | 27,0 | 17,0 | 7,0 | |
| MT-P05 | 28,0 | 16,0 | 10,0 | |
| MT-P05 | 29,0 | 19,0 | 7,0 | |
| MT-P05 | 30,0 | 22,0 | 7,0 | |
| MT-P05 | 30,0 | 20,0 | 8,0 | |
| MT-P05 | 30,0 | 15,0 | 11,0 | |
| MT-P05 | 32,0 | 19,0 | 7,0 | |
| MT-P05 | 32,0 | 19,0 | 9,0 | |
| MT-P05 | 32,0 | 24,0 | 6,0 | |
| MT-P05 | 32,0 | 22,0 | 8,0 | |
| MT-P05 | 32,0 | 22,0 | 6,0 | |
| MT-P05 | 35,0 | 22,0 | 7,0 | |
| MT-P05 | 35,0 | 25,0 | 8,0 | |
| MT-P05 | 35,0 | 25,0 | 8,0 | |
| MT-P05 | 35,0 | 27,0 | 11,0 | |
| MT-P05 | 35,0 | 25,0 | 9,0 | |
| MT-P05 | 35,0 | 20,0 | 11,0 | |
| MT-P05 | 35,0 | 27,0 | 6,0 | |
| MT-P05 | 36,0 | 28,0 | 8,0 | |
| MT-P05 | 36,0 | 24,0 | 7,0 | |
| MT-P05 | 37,0 | 25,0 | 7,0 | |
| MT-P05 | 38,0 | 25,0 | 9,0 | |
| MT-P05 | 38,0 | 28,0 | 8,0 | |
| MT-P05 | 39,0 | 32,0 | 6,0 | |
| MT-P05 | 40,0 | 27,0 | 7,0 | |
| MT-P05 | 40,0 | 30,0 | 8,0 | |
| MT-P05 | 40,0 | 30,0 | 7,0 | |
| MT-P05 | 40,0 | 28,0 | 11,0 | |
| MT-P05 | 40,0 | 28,0 | 10,0 | |
| MT-P05 | 40,0 | 30,0 | 6,0 | |
| MT-P05 | 40,0 | 32,0 | 6,0 | |
| MT-P05 | 40,0 | 32,0 | 4,0 | |
| MT-P05 | 41,0 | 30,0 | 7,0 | |
| MT-P05 | 43,0 | 30,0 | 11,0 | |
| MT-P05 | 43,0 | 35,0 | 10,0 | |
| MT-P05 | 43,0 | 38,0 | 4,0 | |
| MT-P05 | 44,0 | 29,0 | 11,0 | |
| MT-P05 | 44,0 | 35,0 | 8,0 | |
| MT-P05 | 45,0 | 38,0 | 7,0 | |
| MT-P05 | 45,0 | 37,0 | 8,0 | |
| MT-P05 | 45,0 | 35,0 | 7,0 | |
| MT-P05 | 45,0 | 38,0 | 9,0 | |
| MT-P05 | 45,0 | 35,0 | 8,0 | |
| MT-P05 | 48,0 | 32,0 | 9,0 | |
| MT-P05 | 49,0 | 35,0 | 11,0 | |
| MT-P05 | 50,0 | 40,0 | 8,0 | |
| MT-P05 | 50,0 | 40,0 | 6,0 | |
| MT-P05 | 50,0 | 38,0 | 7,0 | |
| MT-P05 | 50,0 | 42,0 | 11,0 | |
| MT-P05 | 50,0 | 41,0 | 6,0 | |
| MT-P05 | 50,0 | 40,0 | 7,0 | |
| MT-P05 | 51,0 | 41,0 | 8,0 | |
| MT-P05 | 52,0 | 42,0 | 6,0 | |
| MT-P05 | 54,0 | 38,0 | 11,0 | |
| MT-P05 | 54,0 | 41,0 | 11,0 | |
| MT-P05 | 55,0 | 45,0 | 8,0 | |
| MT-P05 | 55,0 | 45,0 | 11,0 | |
| MT-P05 | 55,0 | 45,0 | 10,0 | |
| MT-P05 | 55,0 | 45,0 | 7,0 | |
| MT-P05 | 55,0 | 47,0 | 9,0 | |
| MT-P05 | 56,0 | 46,0 | 8,0 | |
| MT-P05 | 57,0 | 41,0 | 9,0 | |
| MT-P05 | 57,0 | 41,0 | 11,0 | |
| MT-P05 | 57,0 | 44,0 | 7,0 | |
| MT-P05 | 60,0 | 44,0 | 13,0 | |
| MT-P05 | 60,0 | 50,0 | 11,0 | |
| MT-P05 | 60,0 | 50,0 | 8,0 | |
| MT-P05 | 60,0 | 50,0 | 8,0 | |
| MT-P05 | 60,0 | 48,0 | 7,0 | |
| MT-P05 | 60,0 | 50,0 | 7,0 | |
| MT-P05 | 62,0 | 52,0 | 8,0 | |
| MT-P05 | 63,0 | 53,0 | 7,0 | |
| MT-P05 | 63,0 | 53,0 | 5,0 | |
| MT-P05 | 63,0 | 50,0 | 11,0 | |
| MT-P05 | 63,0 | 53,0 | 8,0 | |
| MT-P05 | 63,0 | 50,0 | 10,0 | |
| MT-P05 | 63,0 | 53,0 | 12,0 | |
| MT-P05 | 64,0 | 46,0 | 10,0 | |
| MT-P05 | 64,0 | 48,0 | 11,0 | |
| MT-P05 | 63,0 | 48,0 | 8,0 | |
| MT-P05 | 65,0 | 55,0 | 8,0 | |
| MT-P05 | 65,0 | 55,0 | 7,0 | |
| MT-P05 | 65,0 | 57,0 | 9,0 | |
| MT-P05 | 67,0 | 51,0 | 10,0 | |
| MT-P05 | 70,0 | 51,0 | 14,0 | |
| MT-P05 | 70,0 | 54,0 | 9,0 | |
| MT-P05 | 70,0 | 50,0 | 15,0 | |
| MT-P05 | 70,0 | 60,0 | 11,0 | |
| MT-P05 | 70,0 | 58,0 | 10,0 | |
| MT-P05 | 70,0 | 62,0 | 9,0 | |
| MT-P05 | 70,0 | 60,0 | 8,0 | |
| MT-P05 | 70,0 | 60,0 | 7,0 | |
| MT-P05 | 73,0 | 64,0 | 7,0 | |
| MT-P05 | 75,0 | 65,0 | 8,0 | |
| MT-P05 | 75,0 | 63,0 | 10,0 | |
| MT-P05 | 75,0 | 65,0 | 7,0 | |
| MT-P05 | 76,0 | 63,0 | 9,0 | |
| MT-P05 | 76,0 | 58,0 | 10,0 | |
| MT-P05 | 79,0 | 67,0 | 7,0 | |
| MT-P05 | 80,0 | 65,0 | 11,0 | |
| MT-P05 | 80,0 | 70,0 | 7,0 | |
| MT-P05 | 80,0 | 65,0 | 10,0 | |
| MT-P05 | 80,0 | 68,0 | 10,0 | |
| MT-P05 | 80,0 | 70,0 | 8,0 | |
| MT-P05 | 80,0 | 71,0 | 8,0 | |
| MT-P05 | 80,0 | 72,0 | 13,0 | |
| MT-P05 | 80,0 | 64,0 | 9,0 | |
| MT-P05 | 80,0 | 70,0 | 13,0 | |
| MT-P05 | 82,0 | 70,0 | 9,0 | |
| MT-P05 | 82,0 | 71,0 | 10,0 | |
| MT-P05 | 83,0 | 72,0 | 8,0 | |
| MT-P05 | 85,0 | 73,0 | 10,0 | |
| MT-P05 | 86,0 | 73,0 | 11,0 | |
| MT-P05 | 85,0 | 75,0 | 7,0 | |
| MT-P05 | 89,0 | 76,0 | 12,0 | |
| MT-P05 | 90,0 | 78,0 | 10,0 | |
| MT-P05 | 90,0 | 80,0 | 7,0 | |
| MT-P05 | 90,0 | 80,0 | 8,0 | |
| MT-P05 | 92,0 | 76,0 | 11,0 | |
| MT-P05 | 95,0 | 76,0 | 11,0 | |
| MT-P05 | 95,0 | 77,0 | 8,0 | |
| MT-P05 | 95,0 | 80,0 | 10,0 | |
| MT-P05 | 98,0 | 86,0 | 11,0 | |
| MT-P05 | 100,0 | 85,0 | 10,0 | |
| MT-P05 | 100,0 | 90,0 | 10,0 | |
| MT-P05 | 100,0 | 85,0 | 12,0 | |
| MT-P05 | 100,0 | 88,0 | 10,0 | |
| MT-P05 | 100,0 | 84,0 | 9,0 | |
| MT-P05 | 100,0 | 90,0 | 12,0 | |
| MT-P05 | 100,0 | 90,0 | 8,0 | |
| MT-P05 | 100,0 | 85,0 | 13,0 | |
| MT-P05 | 100,0 | 90,0 | 8,0 | |
| MT-P05 | 100,0 | 90,0 | 5,0 | |
| MT-P05 | 102,0 | 89,0 | 11,0 | |
| MT-P05 | 102,0 | 83,0 | 14,0 | |
| MT-P05 | 104,0 | 86,0 | 13,0 | |
| MT-P05 | 105,0 | 94,0 | 9,0 | |
| MT-P05 | 108,0 | 89,0 | 14,0 | |
| MT-P05 | 110,0 | 95,0 | 11,0 | |
| MT-P05 | 110,0 | 90,0 | 10,0 | |
| MT-P05 | 112,0 | 98,0 | 10,0 | |
| MT-P05 | 114,0 | 103,0 | 9,0 | |
| MT-P05 | 115,0 | 100,0 | 7,0 | |
| MT-P05 | 115,0 | 95,0 | 13,0 | |
| MT-P05 | 120,0 | 105,0 | 11,0 | |
| MT-P05 | 120,0 | 110,0 | 13,0 | |
| MT-P05 | 120,0 | 100,0 | 13,0 | |
| MT-P05 | 124,0 | 111,0 | 11,0 | |
| MT-P05 | 125,0 | 105,0 | 13,0 | |
| MT-P05 | 125,0 | 105,0 | 17,0 | |
| MT-P05 | 125,0 | 110,0 | 11,0 | |
| MT-P05 | 125,0 | 115,0 | 10,0 | |
| MT-P05 | 125,0 | 105,0 | 16,0 | |
| MT-P05 | 127,0 | 113,0 | 11,0 | |
| MT-P05 | 127,0 | 102,0 | 17,0 | |
| MT-P05 | 130,0 | 110,0 | 13,0 | |
| MT-P05 | 130,0 | 118,0 | 11,0 | |
| MT-P05 | 140,0 | 120,0 | 17,0 | |
| MT-P05 | 140,0 | 125,0 | 16,0 | |
| MT-P05 | 140,0 | 120,0 | 16,0 | |
| MT-P05 | 140,0 | 125,0 | 10,0 | |
| MT-P05 | 140,0 | 125,0 | 11,0 | |
| MT-P05 | 140,0 | 120,0 | 15,0 | |
| MT-P05 | 140,0 | 120,0 | 13,0 | |
| MT-P05 | 145,0 | 130,0 | 11,0 | |
| MT-P05 | 146,0 | 138,0 | 8,0 | |
| MT-P05 | 149,0 | 137,0 | 11,0 | |
| MT-P05 | 150,0 | 135,0 | 9,0 | |
| MT-P05 | 150,0 | 135,0 | 10,0 | |
| MT-P05 | 152,0 | 130,0 | 16,0 | |
| MT-P05 | 152,0 | 130,0 | 11,0 | |
| MT-P05 | 154,0 | 138,0 | 9,0 | |
| MT-P05 | 160,0 | 140,0 | 15,0 | |
| MT-P05 | 160,0 | 145,0 | 15,0 | |
| MT-P05 | 160,0 | 145,0 | 10,0 | |
| MT-P05 | 160,0 | 145,0 | 11,0 | |
| MT-P05 | 170,0 | 148,0 | 16,0 | |
| MT-P05 | 170,0 | 145,0 | 25,0 | |
| MT-P05 | 170,0 | 150,0 | 20,0 | |
| MT-P05 | 175,0 | 155,0 | 15,0 | |
| MT-P05 | 180,0 | 160,0 | 10,0 | |
| MT-P05 | 180,0 | 160,0 | 15,0 | |
| MT-P05 | 180,0 | 165,0 | 10,0 | |
| MT-P05 | 180,0 | 160,0 | 13,0 | |
| MT-P05 | 180,0 | 170,0 | 10,0 | |
| MT-P05 | 190,0 | 159,0 | 20,0 | |
| MT-P05 | 190,0 | 170,0 | 15,0 | |
| MT-P05 | 190,0 | 170,0 | 20,0 | |
| MT-P05 | 200,0 | 175,0 | 17,0 | |
| MT-P05 | 200,0 | 180,0 | 15,0 | |
| MT-P05 | 200,0 | 170,0 | 19,0 | |
| MT-P05 | 203,0 | 184,0 | 16,0 | |
| MT-P05 | 210,0 | 185,0 | 18,0 | |
| MT-P05 | 220,0 | 195,0 | 17,0 | |
| MT-P05 | 220,0 | 200,0 | 20,0 | |
| MT-P05 | 222,0 | 190,0 | 20,0 | |
| MT-P05 | 248,0 | 216,0 | 20,0 | |
| MT-P05 | 250,0 | 230,0 | 15,0 | |
| MT-P05 | 250,0 | 238,0 | 15,0 | |
| MT-P05 | 250,0 | 230,0 | 16,0 | |
| MT-P05 | 260,0 | 240,0 | 17,0 | |
| MT-P05 | 260,0 | 235,0 | 18,0 | |
| MT-P05 | 280,0 | 250,0 | 19,0 | |
| MT-P05 | 280,0 | 245,0 | 21,0 | |
| MT-P05 | 300,0 | 270,0 | 13,0 | |
| MT-P05 | 300,0 | 288,0 | 15,0 | |
| MT-P05 | 300,0 | 270,0 | 16,0 | |
| MT-P05 | 310,0 | 278,0 | 20,0 | |
| MT-P05 | 320,0 | 290,0 | 21,0 | |
| MT-P05 | 320,0 | 295,0 | 19,0 | |
| MT-P05 | 320,0 | 295,0 | 18,0 | |
| MT-P05 | 330,0 | 310,0 | 13,0 | |
| MT-P05 | 350,0 | 320,0 | 22,0 | |
| MT-P05 | 360,0 | 330,0 | 22,0 | |
| MT-P05 | 360,0 | 320,0 | 25,0 | |
| MT-P05 | 380,0 | 345,0 | 21,0 | |
| MT-P05 | 380,0 | 350,0 | 30,0 | |
| MT-P05 | 430,0 | 400,0 | 30,0 |
