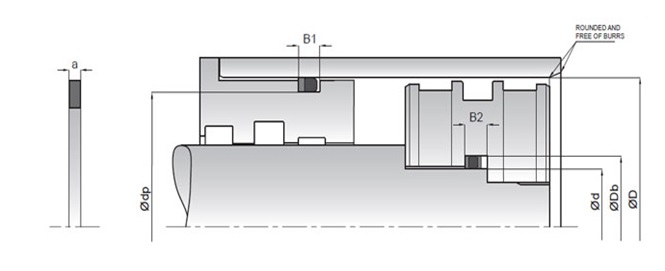

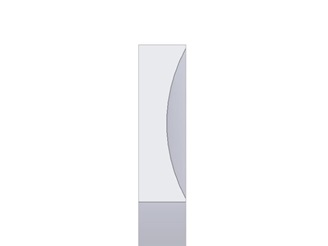

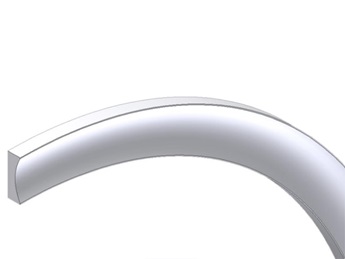

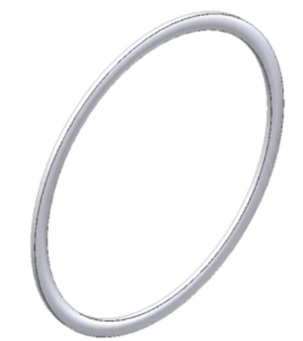

Anneau d’appui standard généralement utilisé avec des joints toriques pour éviter l’extrusion d’espaces. Conception divisée et non divisée disponible.
| Code MT | DI | DE | a | |
|---|---|---|---|---|
| MT-B09 | 6,0 | 12,0 | 2,0 | |
| MT-B09 | 12,0 | 16,0 | 1,0 | |
| MT-B09 | 20,0 | 25,0 | 1,0 | |
| MT-B09 | 20,0 | 30,0 | 1,0 | |
| MT-B09 | 22,0 | 28,0 | 2,0 | |
| MT-B09 | 25,0 | 30,0 | 2,0 | |
| MT-B09 | 25,0 | 30,0 | 1,0 | |
| MT-B09 | 26,0 | 30,0 | 2,0 | |
| MT-B09 | 27,0 | 32,0 | 1,0 | |
| MT-B09 | 28,0 | 35,0 | 1,0 | |
| MT-B09 | 30,0 | 35,0 | 1,0 | |
| MT-B09 | 35,0 | 40,0 | 2,0 | |
| MT-B09 | 35,0 | 40,0 | 1,0 | |
| MT-B09 | 36,0 | 40,0 | 1,0 | |
| MT-B09 | 38,0 | 43,0 | 1,0 | |
| MT-B09 | 40,0 | 45,0 | 1,0 | |
| MT-B09 | 40,0 | 45,0 | 2,0 | |
| MT-B09 | 41,0 | 45,0 | 1,0 | |
| MT-B09 | 41,0 | 46,0 | 1,0 | |
| MT-B09 | 43,0 | 48,0 | 1,0 | |
| MT-B09 | 44,0 | 50,0 | 2,0 | |
| MT-B09 | 44,0 | 50,0 | 1,0 | |
| MT-B09 | 45,0 | 50,0 | 1,0 | |
| MT-B09 | 45,0 | 50,0 | 2,0 | |
| MT-B09 | 45,0 | 55,0 | 2,0 | |
| MT-B09 | 46,0 | 50,0 | 1,0 | |
| MT-B09 | 47,0 | 52,0 | 2,0 | |
| MT-B09 | 48,0 | 54,0 | 2,0 | |
| MT-B09 | 49,0 | 55,0 | 1,0 | |
| MT-B09 | 50,0 | 55,0 | 1,0 | |
| MT-B09 | 50,0 | 60,0 | 2,0 | |
| MT-B09 | 52,0 | 60,0 | 2,0 | |
| MT-B09 | 54,0 | 60,0 | 2,0 | |
| MT-B09 | 53,0 | 63,0 | 2,0 | |
| MT-B09 | 53,0 | 59,0 | 2,0 | |
| MT-B09 | 55,0 | 63,0 | 2,0 | |
| MT-B09 | 55,0 | 65,0 | 2,0 | |
| MT-B09 | 55,0 | 60,0 | 1,0 | |
| MT-B09 | 56,0 | 60,0 | 1,0 | |
| MT-B09 | 58,0 | 63,0 | 2,0 | |
| MT-B09 | 58,0 | 64,0 | 1,0 | |
| MT-B09 | 57,0 | 63,0 | 1,0 | |
| MT-B09 | 58,0 | 63,0 | 1,0 | |
| MT-B09 | 58,0 | 64,0 | 1,0 | |
| MT-B09 | 59,0 | 65,0 | 2,0 | |
| MT-B09 | 59,0 | 64,0 | 1,0 | |
| MT-B09 | 62,0 | 70,0 | 2,0 | |
| MT-B09 | 62,0 | 68,0 | 1,0 | |
| MT-B09 | 62,0 | 71,0 | 2,0 | |
| MT-B09 | 64,0 | 70,0 | 1,0 | |
| MT-B09 | 64,0 | 73,0 | 2,0 | |
| MT-B09 | 64,0 | 70,0 | 1,0 | |
| MT-B09 | 64,0 | 71,0 | 1,0 | |
| MT-B09 | 65,0 | 70,0 | 1,0 | |
| MT-B09 | 65,0 | 75,0 | 2,0 | |
| MT-B09 | 66,0 | 76,0 | 1,0 | |
| MT-B09 | 66,0 | 70,0 | 1,0 | |
| MT-B09 | 66,0 | 71,0 | 2,0 | |
| MT-B09 | 70,0 | 75,0 | 1,0 | |
| MT-B09 | 69,0 | 75,0 | 2,0 | |
| MT-B09 | 69,0 | 75,0 | 1,0 | |
| MT-B09 | 70,0 | 75,0 | 1,0 | |
| MT-B09 | 70,0 | 80,0 | 2,0 | |
| MT-B09 | 71,0 | 80,0 | 2,0 | |
| MT-B09 | 72,0 | 80,0 | 2,0 | |
| MT-B09 | 72,0 | 81,0 | 2,0 | |
| MT-B09 | 75,0 | 80,0 | 1,0 | |
| MT-B09 | 76,0 | 80,0 | 1,0 | |
| MT-B09 | 76,0 | 82,0 | 2,0 | |
| MT-B09 | 75,0 | 85,0 | 2,0 | |
| MT-B09 | 77,0 | 83,0 | 2,0 | |
| MT-B09 | 80,0 | 89,0 | 2,0 | |
| MT-B09 | 79,0 | 85,0 | 1,0 | |
| MT-B09 | 80,0 | 85,0 | 1,0 | |
| MT-B09 | 82,0 | 90,0 | 2,0 | |
| MT-B09 | 82,0 | 91,0 | 2,0 | |
| MT-B09 | 84,0 | 90,0 | 1,0 | |
| MT-B09 | 85,0 | 90,0 | 1,0 | |
| MT-B09 | 85,0 | 90,0 | 1,0 | |
| MT-B09 | 90,0 | 95,0 | 1,0 | |
| MT-B09 | 90,0 | 100,0 | 2,0 | |
| MT-B09 | 91,0 | 96,0 | 1,0 | |
| MT-B09 | 92,0 | 100,0 | 2,0 | |
| MT-B09 | 95,0 | 100,0 | 1,0 | |
| MT-B09 | 95,0 | 105,0 | 2,0 | |
| MT-B09 | 96,0 | 105,0 | 2,0 | |
| MT-B09 | 100,0 | 110,0 | 2,0 | |
| MT-B09 | 100,0 | 108,0 | 2,0 | |
| MT-B09 | 101,0 | 110,0 | 2,0 | |
| MT-B09 | 100,0 | 105,0 | 1,0 | |
| MT-B09 | 102,0 | 110,0 | 2,0 | |
| MT-B09 | 105,0 | 110,0 | 1,0 | |
| MT-B09 | 106,0 | 115,0 | 2,0 | |
| MT-B09 | 107,0 | 115,0 | 2,0 | |
| MT-B09 | 108,0 | 114,0 | 2,0 | |
| MT-B09 | 109,0 | 118,0 | 2,0 | |
| MT-B09 | 110,0 | 115,0 | 1,0 | |
| MT-B09 | 110,0 | 120,0 | 2,0 | |
| MT-B09 | 110,0 | 120,0 | 2,0 | |
| MT-B09 | 112,0 | 120,0 | 2,0 | |
| MT-B09 | 115,0 | 125,0 | 2,0 | |
| MT-B09 | 115,0 | 125,0 | 2,0 | |
| MT-B09 | 115,0 | 124,0 | 2,0 | |
| MT-B09 | 115,0 | 125,0 | 2,0 | |
| MT-B09 | 117,0 | 125,0 | 2,0 | |
| MT-B09 | 118,0 | 128,0 | 2,0 | |
| MT-B09 | 120,0 | 125,0 | 1,0 | |
| MT-B09 | 120,0 | 130,0 | 2,0 | |
| MT-B09 | 121,0 | 130,0 | 2,0 | |
| MT-B09 | 122,0 | 130,0 | 2,0 | |
| MT-B09 | 125,0 | 135,0 | 2,0 | |
| MT-B09 | 130,0 | 140,0 | 2,0 | |
| MT-B09 | 131,0 | 140,0 | 2,0 | |
| MT-B09 | 130,0 | 142,0 | 2,0 | |
| MT-B09 | 135,0 | 140,0 | 1,0 | |
| MT-B09 | 138,0 | 150,0 | 2,0 | |
| MT-B09 | 138,0 | 150,0 | 2,0 | |
| MT-B09 | 140,0 | 150,0 | 2,0 | |
| MT-B09 | 145,0 | 160,0 | 2,0 | |
| MT-B09 | 145,0 | 155,0 | 2,0 | |
| MT-B09 | 151,0 | 160,0 | 2,0 | |
| MT-B09 | 150,0 | 160,0 | 2,0 | |
| MT-B09 | 151,0 | 160,0 | 2,0 | |
| MT-B09 | 153,0 | 165,0 | 2,0 | |
| MT-B09 | 155,0 | 170,0 | 2,0 | |
| MT-B09 | 155,0 | 165,0 | 2,0 | |
| MT-B09 | 155,0 | 165,0 | 2,0 | |
| MT-B09 | 156,0 | 170,0 | 2,0 | |
| MT-B09 | 158,0 | 170,0 | 2,0 | |
| MT-B09 | 162,0 | 170,0 | 2,0 | |
| MT-B09 | 165,0 | 180,0 | 2,0 | |
| MT-B09 | 171,0 | 180,0 | 2,0 | |
| MT-B09 | 175,0 | 190,0 | 2,0 | |
| MT-B09 | 182,0 | 190,0 | 2,0 | |
| MT-B09 | 188,0 | 200,0 | 2,0 | |
| MT-B09 | 191,0 | 200,0 | 2,0 | |
| MT-B09 | 193,0 | 202,0 | 2,0 | |
| MT-B09 | 198,0 | 210,0 | 2,0 | |
| MT-B09 | 202,0 | 210,0 | 2,0 | |
| MT-B09 | 206,0 | 215,0 | 2,0 | |
| MT-B09 | 211,0 | 220,0 | 2,0 | |
| MT-B09 | 221,0 | 230,0 | 2,0 | |
| MT-B09 | 220,0 | 232,0 | 2,0 | |
| MT-B09 | 228,0 | 240,0 | 2,0 | |
| MT-B09 | 235,0 | 250,0 | 2,0 | |
| MT-B09 | 241,0 | 250,0 | 2,0 | |
| MT-B09 | 242,0 | 250,0 | 2,0 | |
| MT-B09 | 245,0 | 260,0 | 2,0 | |
| MT-B09 | 246,0 | 255,0 | 2,0 | |
| MT-B09 | 261,0 | 270,0 | 2,0 | |
| MT-B09 | 266,0 | 280,0 | 2,0 | |
| MT-B09 | 291,0 | 300,0 | 2,0 | |
| MT-B09 | 296,0 | 305,0 | 2,0 | |
| MT-B09 | 316,0 | 330,0 | 2,0 |
